Renesas Electronics America Inc
POWER, N-CHANNEL MOSFET

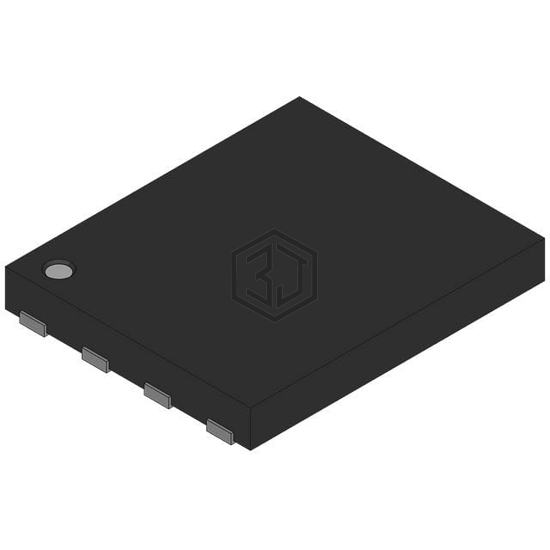

RJK03P9DPA-00#J5A is a Transistors - FETs, MOSFETs - Arrays manufactured by Renesas Electronics America Inc. POWER, N-CHANNEL MOSFET. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-WFDFN Exposed Pad, power - max 15W, 35W.
In Stock: 24,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | 2 N-Channel (Half Bridge) |
| FET Feature | Logic Level Gate, 4.5V Drive |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 20A, 50A |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 7.7nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1660pF @ 10V |
| Power - Max | 15W, 35W |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WPAK |
Submit your RFQ for RJK03P9DPA-00#J5A and get a quote within 24 hours.
