Renesas Electronics America Inc
IC MCU 16BIT 16KB FLASH 40HWQFN

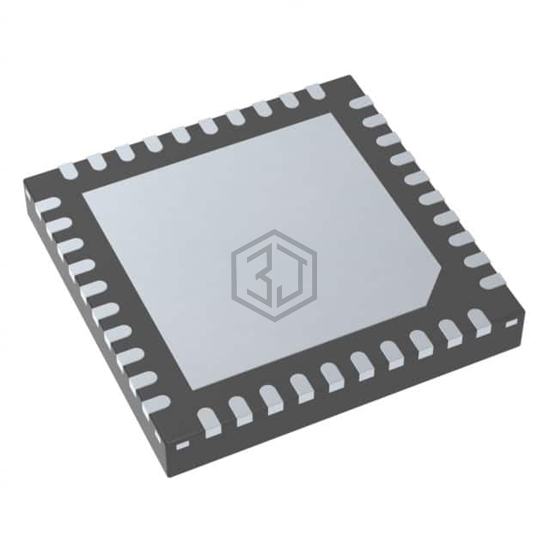

R5F100EAGNA#U0 is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 16BIT 16KB FLASH 40HWQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 2.4V ~ 5.5V, package / case 40-WFQFN Exposed Pad.
In Stock: 4,201
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | RL78 |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 28 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 9x8/10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-HWQFN (6x6) |
R5F100EAGNA#U0 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R5F10PGJCLFB#35Q | Renesas Electronics America Inc | IC MCU 16BIT 256KB FLASH 48LFQFP | 94% | View |
| PIC24FJ128GA202-E/SS | Microchip Technology | IC MCU 16BIT 128KB FLASH 28SSOP | 94% | View |
| PIC16LF1787-E/PT | Microchip Technology | IC MCU 8BIT 14KB FLASH 44TQFP | 93% | View |
| ATXMEGA128D4-MNR | Microchip Technology | IC MCU 8/16BIT 128KB FLSH 44VQFN | 92% | View |
| S912ZVC12F0VKH | NXP USA Inc. | IC MCU 16BIT 128KB FLASH 64LQFP | 89% | View |
| PIC16F18424-E/SL | Microchip Technology | IC MCU 8BIT 7KB FLASH 14SOIC | 87% | View |
Submit your RFQ for R5F100EAGNA#U0 and get a quote within 24 hours.
