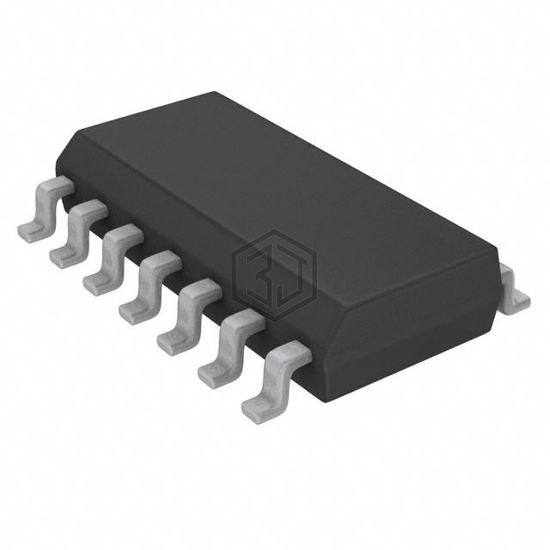

IC MCU 8BIT 7KB FLASH 14SOIC
PIC16F18424-E/SL is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 8BIT 7KB FLASH 14SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2.3V ~ 5.5V, package / case 14-SOIC (0.154", 3.90mm Width).
In Stock: 5,053
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 32MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 11 |
| Program Memory Size | 7KB (4K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V |
| Data Converters | A/D 11x12b; D/A 1x5b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16F18324-E/JQVAO | Microchip Technology | IC MCU 8BIT 7KB FLASH 16UQFN | 99% | View |
| PIC16F1618-E/SS | Microchip Technology | IC MCU 8BIT 7KB FLASH 20SSOP | 93% | View |
| PIC16F18313-E/RFVAO | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 8UDFN | 92% | View |
| PIC16LF18446-E/GZ | Microchip Technology | IC MCU 8BIT 28KB FLASH 20UQFN | 90% | View |
| PIC24FJ128GA202-E/SS | Microchip Technology | IC MCU 16BIT 128KB FLASH 28SSOP | 89% | View |
| PIC16LF1787-E/PT | Microchip Technology | IC MCU 8BIT 14KB FLASH 44TQFP | 81% | View |
Submit your RFQ for PIC16F18424-E/SL and get a quote within 24 hours.
