Renesas Electronics America Inc

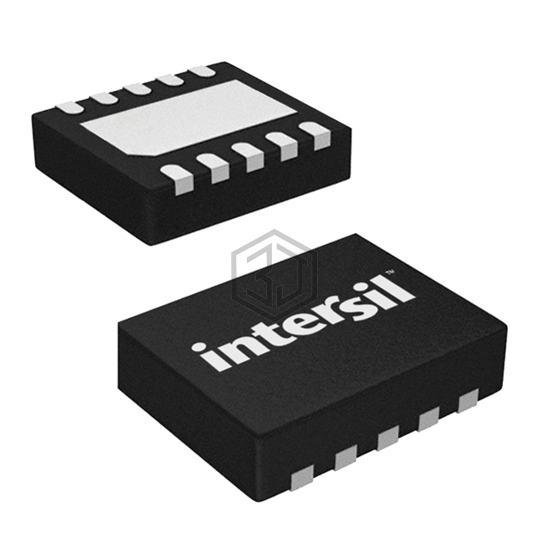

IC SWITCH DUAL SPDT 10TDFN
ISL8484IRZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH DUAL SPDT 10TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.
In Stock: 7,938
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns |
| -3db Bandwidth | - |
| Charge Injection | 170pC |
| Channel Capacitance (CS(off), CD(off)) | 62pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (3x3) |
ISL8484IRZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL8484IUZ | Intersil | SPDT ANALOG SWITCH, 2 FUNC, 1 CH | 100% | View |
| DG2517EDN-T1-GE4 | Vishay Siliconix | IC SWITCH DUAL SPDT 10DFN | 98% | View |
| DG2519EDQ-T1-GE3 | Vishay Siliconix | IC SWITCH SPDT DUAL 10MSOP | 98% | View |
| NX3L4053PW,118 | NXP USA Inc. | IC ANALOG SWITCH SPDT 16TSSOP | 66% | View |
| NX3L1T53GT,115 | NXP USA Inc. | IC ANALOG SWITCH SPDT XSON8U | 62% | View |
| STG3856QTR | STMicroelectronics | IC SWITCH DUAL SP3T 12QFN | 60% | View |
Submit your RFQ for ISL8484IRZ and get a quote within 24 hours.
