Renesas Electronics America Inc

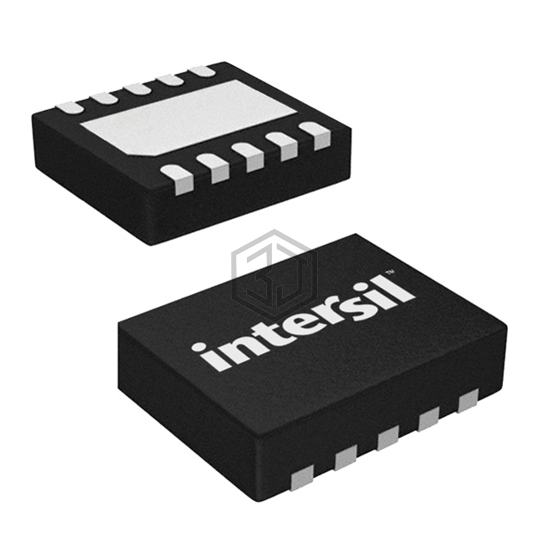

IC SWITCH DUAL SPDT 10TDFN
ISL84684IRZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH DUAL SPDT 10TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.
In Stock: 9,455
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 55mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 27ns |
| -3db Bandwidth | - |
| Charge Injection | 94pC |
| Channel Capacitance (CS(off), CD(off)) | 65pF |
| Current - Leakage (IS(off)) (Max) | 4nA |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (3x3) |
ISL84684IRZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4684EBC+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 12UCSP | 79% | View |
| MAX4684EUB+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 10UMAX | 79% | View |
| MAX4684AEBC+T | Analog Devices Inc./Maxim Integrated | 0.5 OHM/0.8OHM LOW-VOLTAGE, DUAL | 79% | View |
| ADG884BCPZ-REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 10LFCSP | 73% | View |
| DG3257DN-T1-GE4 | Vishay Siliconix | IC ANALOG SWITCH 6UDFN | 64% | View |
| ISL84052IVZ-T | Renesas Electronics America Inc | IC MUX/DEMUX DUAL 4X1 16TSSOP | 58% | View |
