Analog Devices Inc./Maxim Integrated

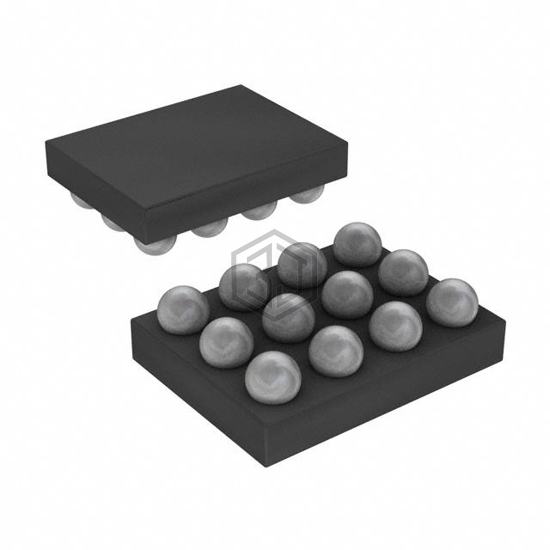

IC SWITCH DUAL SPDT 12UCSP
MAX4684EBC+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH DUAL SPDT 12UCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-WFBGA, CSPBGA, number of circuits 2.
In Stock: 6,225
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 800mOhm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns |
| -3db Bandwidth | - |
| Charge Injection | 200pC |
| Channel Capacitance (CS(off), CD(off)) | 84pF, 37pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -68dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFBGA, CSPBGA |
| Supplier Device Package | 12-UCSP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL84684IRZ | Renesas Electronics America Inc | IC SWITCH DUAL SPDT 10TDFN | 79% | View |
| ADG884BCPZ-REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 10LFCSP | 77% | View |
| NLAS5223BMUR2G | onsemi | IC SWITCH DUAL SPDT 10UQFN | 75% | View |
| DG3257DN-T1-GE4 | Vishay Siliconix | IC ANALOG SWITCH 6UDFN | 63% | View |
| ISL84052IVZ-T | Renesas Electronics America Inc | IC MUX/DEMUX DUAL 4X1 16TSSOP | 59% | View |
| ISL84581IAZ | Renesas Electronics America Inc | IC MULTIPLEXER 8X1 16QSOP | 50% | View |
Submit your RFQ for MAX4684EBC+T and get a quote within 24 hours.
