Renesas Electronics America Inc

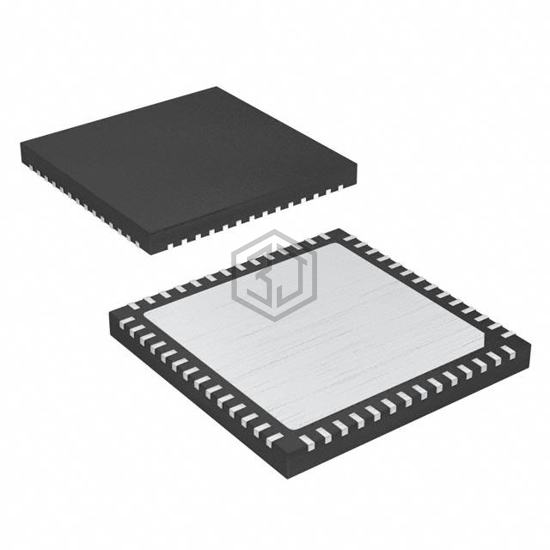

IC PWR DRIVER N-CHAN 1:1 56QFN
ISL6580CR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Renesas Electronics America Inc. IC PWR DRIVER N-CHAN 1:1 56QFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3.3V, 5V, package / case 56-VFQFN Exposed Pad.
In Stock: 6,568
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 12 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side or Low Side |
| Output Type | N-Channel |
| Interface | I²C |
| Voltage - Load | 12V (Max) |
| Voltage - Supply (Vcc/Vdd) | 3.3V, 5V |
| Current - Output (Max) | 25A |
| Rds On (Typ) | 20mOhm |
| Input Type | - |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 56-QFN (8x8) |
| Package / Case | 56-VFQFN Exposed Pad |
ISL6580CR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL6580CR-T | Renesas Electronics America Inc | IC PWR DRIVER N-CHAN 1:1 56QFN | 100% | View |
Submit your RFQ for ISL6580CR and get a quote within 24 hours.
