Renesas Electronics America Inc

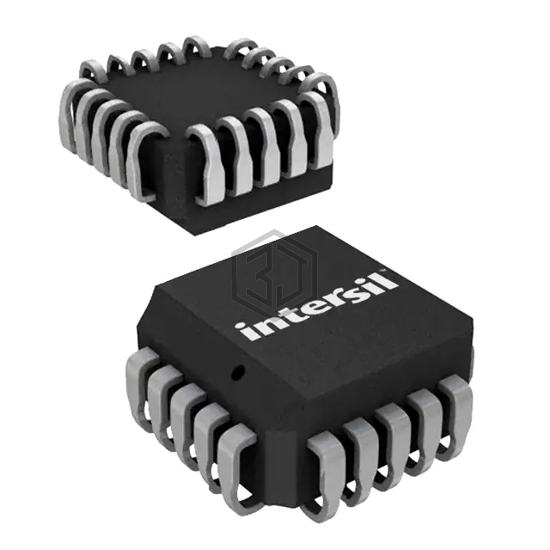

IC SWITCH QUAD SPST 20PLCC
HI4P0201-5Z is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 20PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 75°C (TA), package / case 20-LCC (J-Lead), number of circuits 4.
In Stock: 8,122
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 80Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 240ns, 500ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5.5pF, 5.5pF |
| Current - Leakage (IS(off)) (Max) | 50nA |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
HI4P0201-5Z is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALD4202MSCL | Advanced Linear Devices Inc. | IC SW ANLG QUAD SPST 16SOIC | 66% | View |
| ALD4201SCL | Advanced Linear Devices Inc. | IC SW ANLG QUAD SPST 16SOIC | 66% | View |
| ADG5249FBCPZ-RL7 | Analog Devices Inc. | IC MULTIPLEXER 4X1 20TSSOP | 59% | View |
| ADG5249FBRUZ-RL7 | Analog Devices Inc. | IC MULTIPLEXER 4X1 20TSSOP | 59% | View |
| ADG5249FBRUZ | Analog Devices Inc. | IC MULTIPLEXER 4X1 20TSSOP | 59% | View |
| ADG5412WBRUZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 57% | View |
