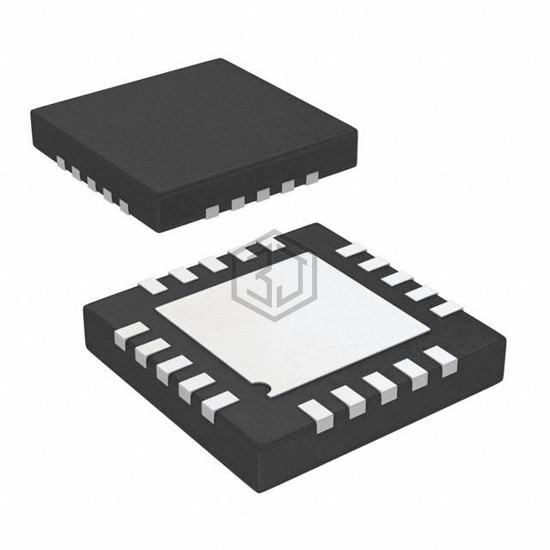

IC MULTIPLEXER 4X1 20TSSOP
ADG5249FBCPZ-RL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER 4X1 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 20-WFQFN Exposed Pad, CSP, number of circuits 2.
In Stock: 5,013
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 335Ohm |
| Channel-to-Channel Matching (ΔRon) | 3Ohm |
| Voltage - Supply, Single (V+) | 8V ~ 44V |
| Voltage - Supply, Dual (V±) | ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 245ns, 135ns |
| -3db Bandwidth | 320MHz |
| Charge Injection | -1.2pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -75dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 20-LFCSP (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG5249FBRUZ-RL7 | Analog Devices Inc. | IC MULTIPLEXER 4X1 20TSSOP | 100% | View |
| ADG5249FBRUZ | Analog Devices Inc. | IC MULTIPLEXER 4X1 20TSSOP | 100% | View |
| ADG5248FBRUZ-RL7 | Analog Devices Inc. | IC MULTIPLEXER 8X1 20TSSOP | 80% | View |
| ADG5248FBRUZ | Analog Devices Inc. | IC MULTIPLEXER 8X1 20TSSOP | 80% | View |
| ADG5248FBCPZ-RL7 | Analog Devices Inc. | IC MULTIPLEXER 8X1 20TSSOP | 80% | View |
| ADG438FBRZ-REEL | Analog Devices Inc. | IC MULTIPLEXER 8X1 16SOIC | 71% | View |
Submit your RFQ for ADG5249FBCPZ-RL7 and get a quote within 24 hours.
