Renesas Electronics America Inc

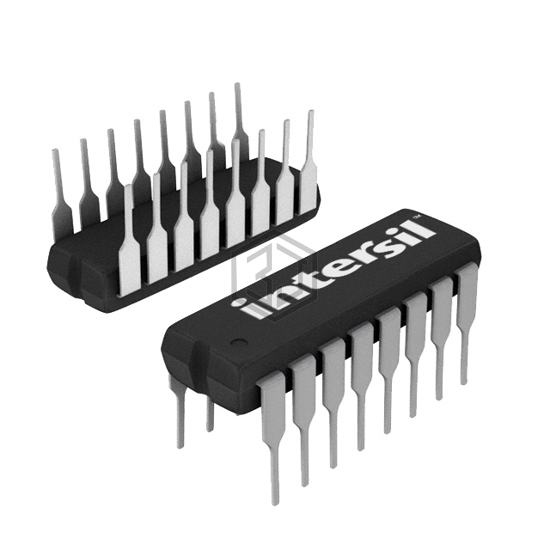

IC MULTIPLEXER 8X1 16CDIP
HI1-0548-5 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MULTIPLEXER 8X1 16CDIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 75°C (TA), package / case 16-CDIP (0.300", 7.62mm), number of circuits 1.
In Stock: 8,190
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.8kOhm |
| Channel-to-Channel Matching (ΔRon) | 126Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP |
HI1-0548-5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI1-0509A-5 | Intersil | DIFFERENTIAL MUX, 4 CHANNEL | 89% | View |
| HI3-0547-5 | Renesas Electronics America Inc | IC MULTIPLEXER DUAL 8X1 28DIP | 89% | View |
| HI3-0549-9 | Harris Corporation | QUAD DIFFERENTIAL MUX | 86% | View |
| DG301AAK | Vishay Siliconix | IC SWITCH SPST 14CERDIP | 70% | View |
| HI1-0387-2 | Harris Corporation | SPDT CMOS ANALOG SWITCH | 57% | View |
| ADG507AKNZ | Analog Devices Inc. | IC MULTIPLEXER DUAL 8X1 28DIP | 53% | View |
Submit your RFQ for HI1-0548-5 and get a quote within 24 hours.
