DIFFERENTIAL MUX, 4 CHANNEL

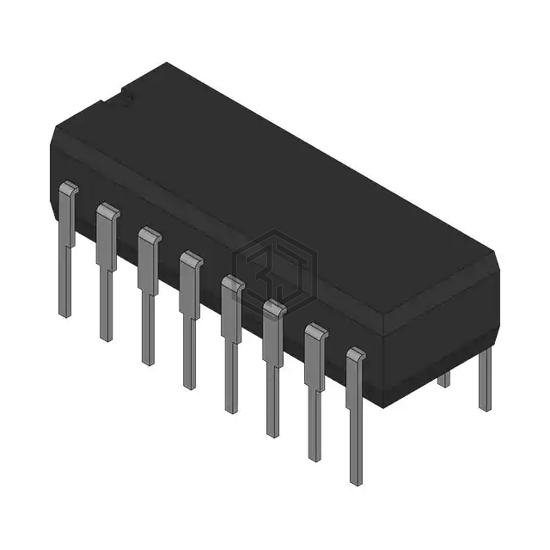

HI1-0509A-5 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. DIFFERENTIAL MUX, 4 CHANNEL. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 75°C (TA), package / case 16-CDIP (0.300", 7.62mm), number of circuits 2.
In Stock: 260
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 1.8kOhm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP |
HI1-0509A-5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI3-0506A-5 | Harris Corporation | SINGLE-ENDED MULTIPLEXER, 1 FUNC | 89% | View |
| HI3-0303-5 | Harris Corporation | DUAL, SPST CMOS ANALOG SWITCH | 68% | View |
| HI1-0302/883 | Harris Corporation | DUAL DPST CMOS ANALOG SWITCH | 68% | View |
| ADG507AKNZ | Analog Devices Inc. | IC MULTIPLEXER DUAL 8X1 28DIP | 64% | View |
| HI1-0387-2 | Harris Corporation | SPDT CMOS ANALOG SWITCH | 57% | View |
| ADG222BQ | Analog Devices Inc. | QUAD SPST SWITCH | 53% | View |
