Renesas Electronics America Inc
IC MULTIPLEXER 8X1 16CDIP

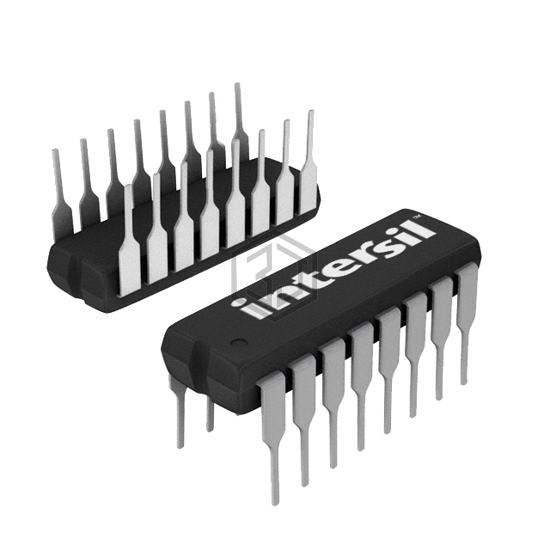

DG508AAK is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MULTIPLEXER 8X1 16CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 16-CDIP (0.300", 7.62mm), number of circuits 1.
In Stock: 6,873
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 24Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP |
DG508AAK is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7506SQ/883B | Analog Devices Inc. | IC MULTIPLEXER 16X1 28CDIP | 100% | View |
| IH5108MJE | Harris Corporation | 8-CH FAULT PROTECTED ANALOG MUX | 89% | View |
| IH5108MJE/883B | Harris Corporation | 8-CH FAULT PROTECTED ANALOG MUX | 89% | View |
| MUX16AT/883C | Analog Devices Inc. | 16-CH JFET ANALOG MULTIPLEXERS | 85% | View |
| DG527AK/883B | Harris Corporation | ANALOG LATCHABLE MUX, 8-CHANNEL | 78% | View |
| 5962-8771602EA | Analog Devices Inc. | IC 8CH JFET MUX/DEMUX 16CDIP | 74% | View |
