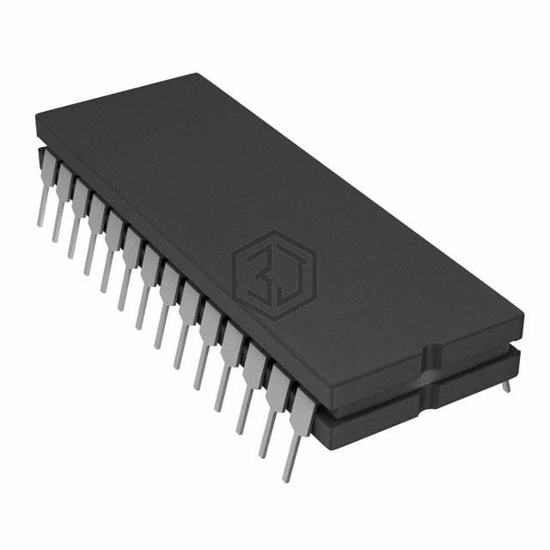

IC MULTIPLEXER 16X1 28CDIP
AD7506SQ/883B is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER 16X1 28CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case 28-CDIP (0.600", 15.24mm), number of circuits 1.
In Stock: 79
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 18Ohm (Typ) |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 40pF |
| Current - Leakage (IS(off)) (Max) | - |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7506SQ | Analog Devices Inc. | IC MULTIPLEXER 16X1 28CDIP | 100% | View |
| IH5108MJE | Harris Corporation | 8-CH FAULT PROTECTED ANALOG MUX | 100% | View |
| IH5108MJE/883B | Harris Corporation | 8-CH FAULT PROTECTED ANALOG MUX | 100% | View |
| IH5208MJE | Harris Corporation | FAULT PROTECTED ANALOG MUX | 86% | View |
| 5962-8771602EA | Analog Devices Inc. | IC 8CH JFET MUX/DEMUX 16CDIP | 80% | View |
| DG527AK/883B | Harris Corporation | ANALOG LATCHABLE MUX, 8-CHANNEL | 71% | View |
Submit your RFQ for AD7506SQ/883B and get a quote within 24 hours.
