Renesas Electronics America Inc
IC MULTIPLEXER 8X1 16DIP

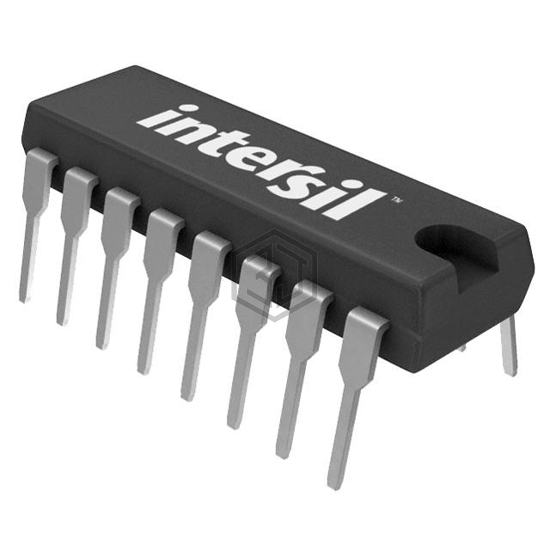

DG408DJZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MULTIPLEXER 8X1 16DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 1.
In Stock: 5,243
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm (Max) |
| Voltage - Supply, Single (V+) | 5V ~ 34V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 26pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG409DJ | Intersil | DUAL 4-CHANNEL CMOS ANALOG MUX | 91% | View |
| DG409DJ+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16DIP | 91% | View |
| DG409EJ | Harris Corporation | 4-CHANNEL ANALOG MUX | 89% | View |
| DG405EJ | Harris Corporation | MONOLITHIC CMOS ANALOG SWITCH | 74% | View |
| DG401DJ | Harris Corporation | SPST, 2 FUNC, 1 CHANNEL, CMOS, P | 66% | View |
| MAX396EPI+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 16X1 28DIP | 56% | View |
Submit your RFQ for DG408DJZ and get a quote within 24 hours.
