DUAL 4-CHANNEL CMOS ANALOG MUX

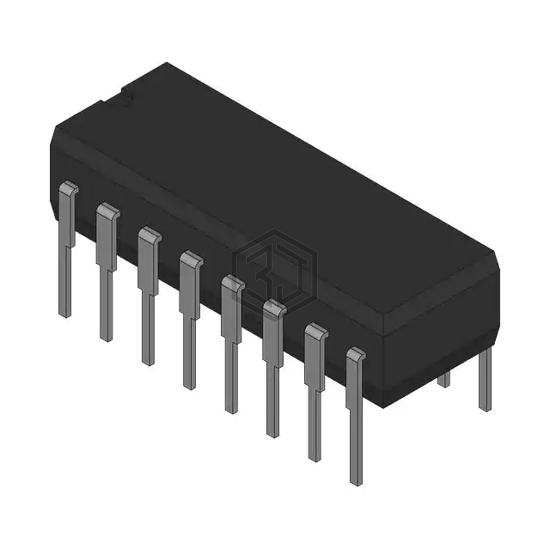

DG409DJ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. DUAL 4-CHANNEL CMOS ANALOG MUX. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 2.
In Stock: 1,621
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm (Max) |
| Voltage - Supply, Single (V+) | 5V ~ 34V, ±5V ~ 20V |
| Voltage - Supply, Dual (V±) | 5V ~ 34V, ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
DG409DJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG409DJ+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16DIP | 100% | View |
| DG408DJZ | Renesas Electronics America Inc | IC MULTIPLEXER 8X1 16DIP | 91% | View |
| DG405EJ | Harris Corporation | MONOLITHIC CMOS ANALOG SWITCH | 83% | View |
| ADG406BNZ | Analog Devices Inc. | IC MULTIPLEXER 16X1 28DIP | 73% | View |
| ADG406BN | Analog Devices Inc. | IC MULTIPLEXER 16X1 28DIP | 73% | View |
| DG390BDJ-E3 | Vishay Siliconix | IC SWITCH CMOS 16DIP | 51% | View |
