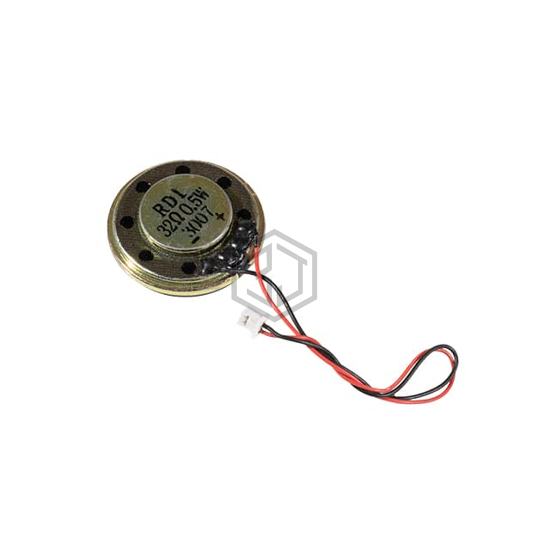

28 MM SPEAKER
28A1050-32B0428 is a Speakers manufactured by RDI, Inc.. 28 MM SPEAKER. Key specifications: size / dimension 1.004" Dia (25.50mm), termination Wire Leads with Connector, power - max 800 mW, frequency range 800 Hz ~ 5.9 kHz.
In Stock: 720
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 800 Hz ~ 5.9 kHz |
| Frequency - Self Resonant | 800Hz |
| Impedance | 32 Ohms |
| Efficiency - dBA | 90.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 800 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B-N35 |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads with Connector |
| Size / Dimension | 1.004" Dia (25.50mm) |
| Height - Seated (Max) | 0.283" (7.20mm) |
Submit your RFQ for 28A1050-32B0428 and get a quote within 24 hours.
