TRANSFORMER AUDIO 1:1 SMD

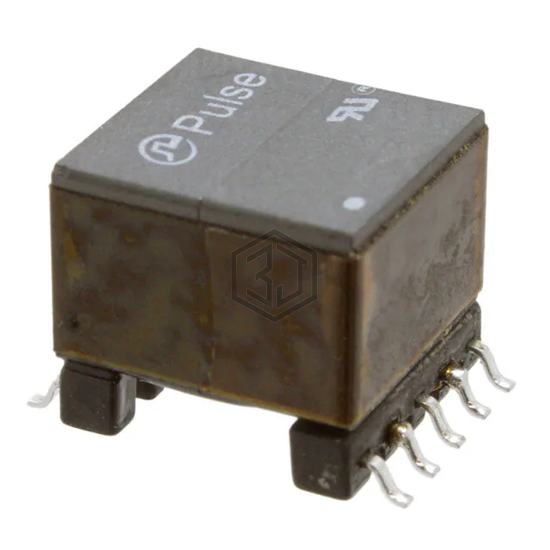

T6003NLT is a Audio Transformers manufactured by Pulse Electronics Network. TRANSFORMER AUDIO 1:1 SMD. Key specifications: mounting type Surface Mount, size / dimension 0.530" L x 0.516" W (13.46mm x 13.11mm), termination style Gull Wing.
In Stock: 11,637
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Turns Ratio - Primary:Secondary | 1:1 |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 600 |
| DC Resistance (DCR) - Primary | 55Ohm |
| DC Resistance (DCR) - Secondary | 70Ohm |
| Transformer Type | General Purpose |
| Frequency Range | - |
| Frequency Response | - |
| Voltage - Isolation | 1500Vrms |
| Insertion Loss | 1dB @ 200Hz, 1dB @ 1kHz, 1dB @ 20kHz, 1.9dB @ 100kHz |
| Return Loss | 20dB @ 200Hz, 1dB @ 1kHz, 25dB @ 10kHz |
| Power Level | - |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.530" L x 0.516" W (13.46mm x 13.11mm) |
| Height - Seated (Max) | 0.485" (12.32mm) |
| Termination Style | Gull Wing |
Submit your RFQ for T6003NLT and get a quote within 24 hours.
