INDUCT ARRAY 2 COIL 10.5UH SMD

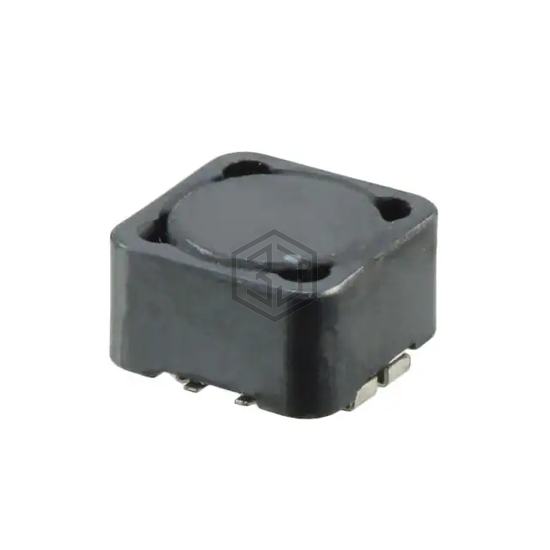

PF0553.103NLT is a Arrays, Signal Transformers manufactured by Pulse Electronics Power. INDUCT ARRAY 2 COIL 10.5UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.492" L x 0.492" W (12.50mm x 12.50mm).
In Stock: 1,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 10.5 µH |
| Inductance - Connected In Series | 42 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 6 A |
| Current Rating - Series | 3 A |
| Current Saturation - Parallel | 11 A |
| Current Saturation - Series | 5.6 A |
| DC Resistance (DCR) - Parallel | 17mOhm Max |
| DC Resistance (DCR) - Series | 67mOhm Max |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.315" (8.00mm) |
Submit your RFQ for PF0553.103NLT and get a quote within 24 hours.
