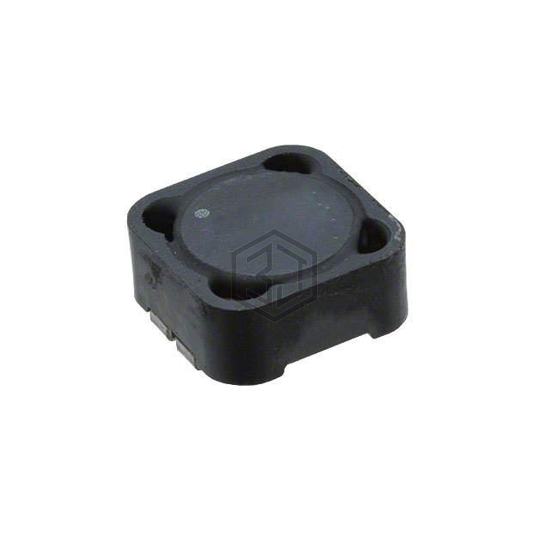

INDUCT ARRAY 2 COIL 34UH SMD
PF0552.333NLT is a Arrays, Signal Transformers manufactured by Pulse Electronics Power. INDUCT ARRAY 2 COIL 34UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.492" L x 0.492" W (12.50mm x 12.50mm).
In Stock: 2,801
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 34 µH |
| Inductance - Connected In Series | 135 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 3.7 A |
| Current Rating - Series | 1.9 A |
| Current Saturation - Parallel | 3.9 A |
| Current Saturation - Series | 2 A |
| DC Resistance (DCR) - Parallel | 54mOhm Max |
| DC Resistance (DCR) - Series | 220mOhm Max |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.236" (6.00mm) |
Submit your RFQ for PF0552.333NLT and get a quote within 24 hours.
