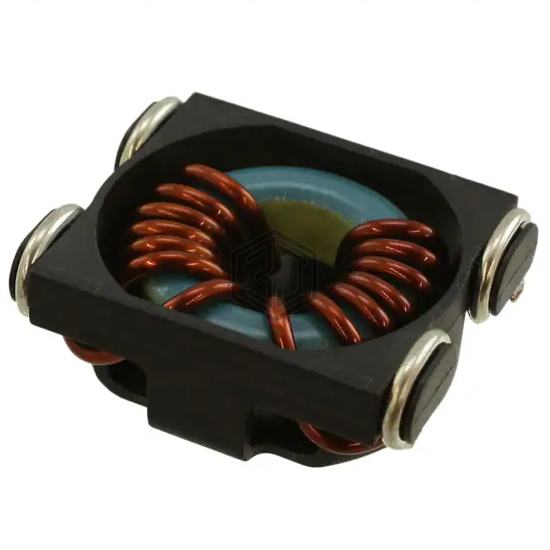

INDUCT ARRAY 2 COIL 2.1UH SMD
P0599NL is a Arrays, Signal Transformers manufactured by Pulse Electronics Power. INDUCT ARRAY 2 COIL 2.1UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, size / dimension 1.220" L x 1.000" W (30.99mm x 25.40mm).
In Stock: 159
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 2.1 µH |
| Inductance - Connected In Series | 8.4 µH |
| Tolerance | ±15% |
| Current Rating - Parallel | 38 A |
| Current Rating - Series | 19 A |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 1.3mOhm Max |
| DC Resistance (DCR) - Series | 5.1mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 1.220" L x 1.000" W (30.99mm x 25.40mm) |
| Height | 0.500" (12.70mm) |
Submit your RFQ for P0599NL and get a quote within 24 hours.
