INDUCT ARRAY 2 COIL 2.2UH SMD

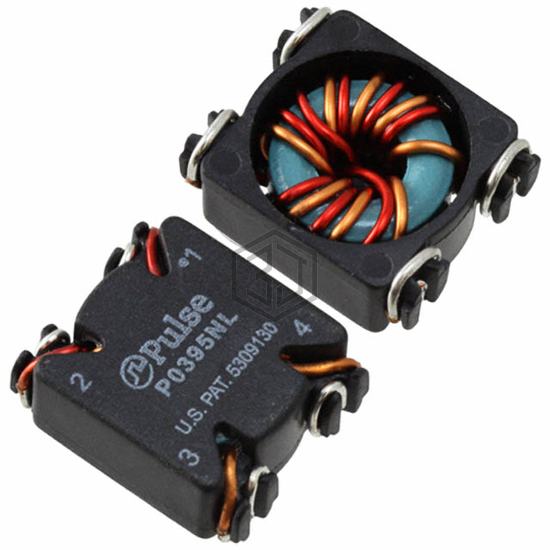

P0395NL is a Arrays, Signal Transformers manufactured by Pulse Electronics Power. INDUCT ARRAY 2 COIL 2.2UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, size / dimension 0.715" L x 0.590" W (18.16mm x 14.99mm).
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 2.2 µH |
| Inductance - Connected In Series | 9 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 14.4 A |
| Current Rating - Series | 7.2 A |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 4.41mOhm |
| DC Resistance (DCR) - Series | 17.6mOhm |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.715" L x 0.590" W (18.16mm x 14.99mm) |
| Height | 0.310" (7.87mm) |
Submit your RFQ for P0395NL and get a quote within 24 hours.
