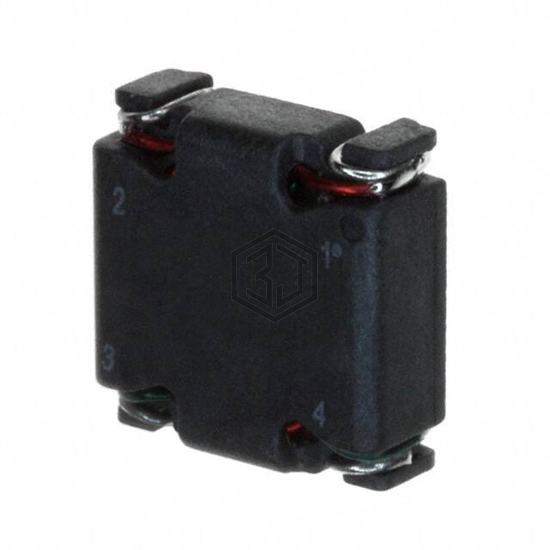

INDUCT ARRAY 2 COIL 10.4UH SMD
P0177NL is a Arrays, Signal Transformers manufactured by Pulse Electronics Power. INDUCT ARRAY 2 COIL 10.4UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, size / dimension 0.500" L x 0.500" W (12.70mm x 12.70mm).
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 10.4 µH |
| Inductance - Connected In Series | 41.7 µH |
| Tolerance | ±10% |
| Current Rating - Parallel | 3.8 A |
| Current Rating - Series | 1.89 A |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 29.8mOhm Max |
| DC Resistance (DCR) - Series | 120mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height | 0.215" (5.46mm) |
Submit your RFQ for P0177NL and get a quote within 24 hours.
