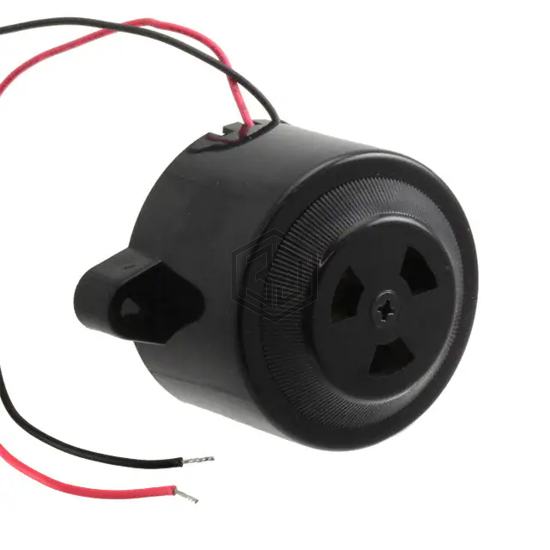

BUZZER PIEZO 12V 50MM FLANGE
XL-5020-TF-LW150-S-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER PIEZO 12V 50MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -30°C ~ 80°C, voltage - rated 12 V, current - supply 120mA.
In Stock: 199
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 16V |
| Frequency | 2.3kHz |
| Technology | Piezo |
| Operating Mode | Siren |
| Duration | 1.2 PPS |
| Sound Pressure Level (SPL) | 110dB @ 12V, 10cm |
| Current - Supply | 120mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 80°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 1.496" (38.00mm) |
