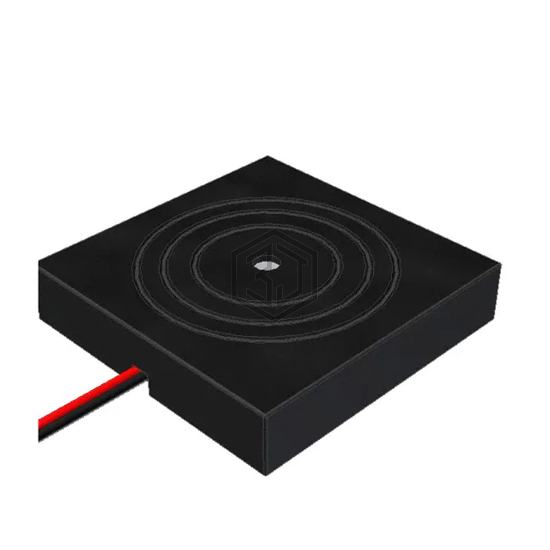

BUZZER PIEZO 12V 40X40MM CUSTOM
X-4035-TFL-LW140-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER PIEZO 12V 40X40MM CUSTOM. Key specifications: mounting type Custom, operating temperature -30°C ~ 80°C, voltage - rated 12 V, current - supply 8mA.
In Stock: 35
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 20V |
| Frequency | 3.5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 99dB @ 12V, 10cm |
| Current - Supply | 8mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 80°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Custom |
| Termination | Wire Leads |
| Size / Dimension | 1.575" L x 1.575" W (40.00mm x 40.00mm) |
| Height - Seated (Max) | 0.339" (8.60mm) |
Submit your RFQ for X-4035-TFL-LW140-R and get a quote within 24 hours.
