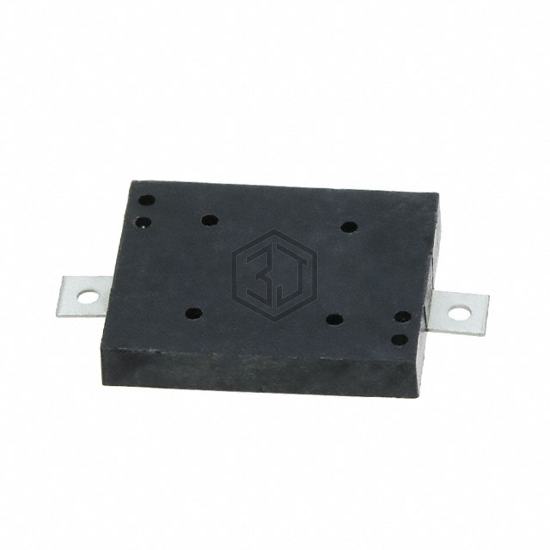

BUZZER PIEZO 5V 11X9MM SMD
SMT-1141-T-5-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER PIEZO 5V 11X9MM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 80°C, voltage - rated 5 V, current - supply 2.9mA.
In Stock: 8,460
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 1 ~ 25V |
| Frequency | 4.1kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 73dB @ 5V, 10cm |
| Current - Supply | 2.9mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 80°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.433" L x 0.354" W (11.00mm x 9.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for SMT-1141-T-5-R and get a quote within 24 hours.
