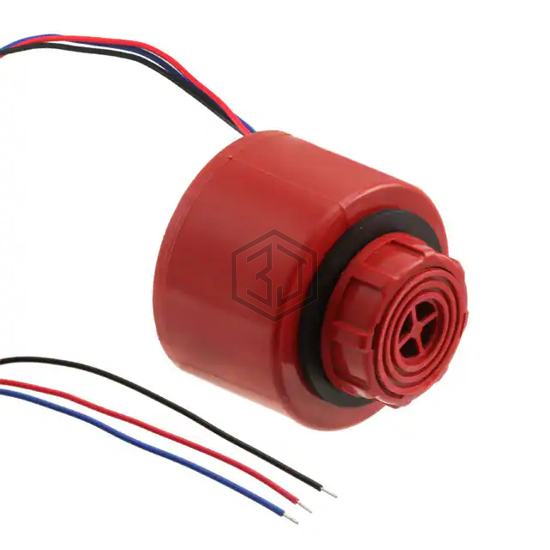

BUZZER PIEZO 12V 50MM PNL MNT
AW-10PR-NSVC is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER PIEZO 12V 50MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -40°C ~ 80°C, voltage - rated 12 V, current - supply 15mA.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 9 ~ 28V |
| Frequency | 2.9kHz |
| Technology | Piezo |
| Operating Mode | Dual Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 106dB @ 12V, 10cm |
| Current - Supply | 15mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 80°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount |
| Termination | Wire Leads |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 1.791" (45.50mm) |
Submit your RFQ for AW-10PR-NSVC and get a quote within 24 hours.
