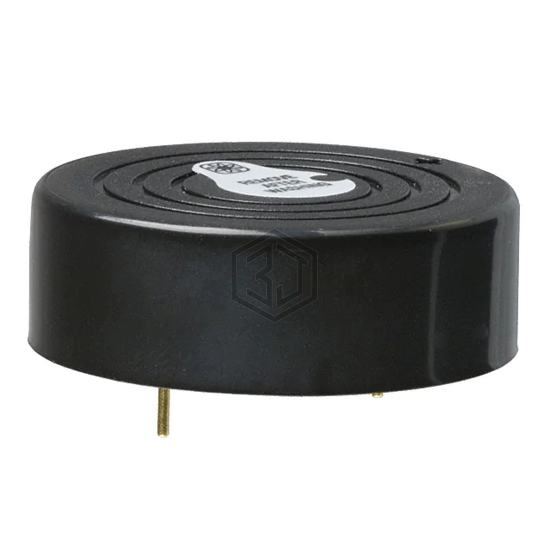

BUZZER PIEZO 12V 42MM TH
AT-4228-TWT-F-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER PIEZO 12V 42MM TH. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 85°C, voltage - rated 12 V, current - supply 7mA.
In Stock: 9,683
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 28V |
| Frequency | 2.8kHz |
| Technology | Piezo (with Feedback) |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 92dB @ 12V, 10cm |
| Current - Supply | 7mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.654" Dia (42.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
Submit your RFQ for AT-4228-TWT-F-R and get a quote within 24 hours.
