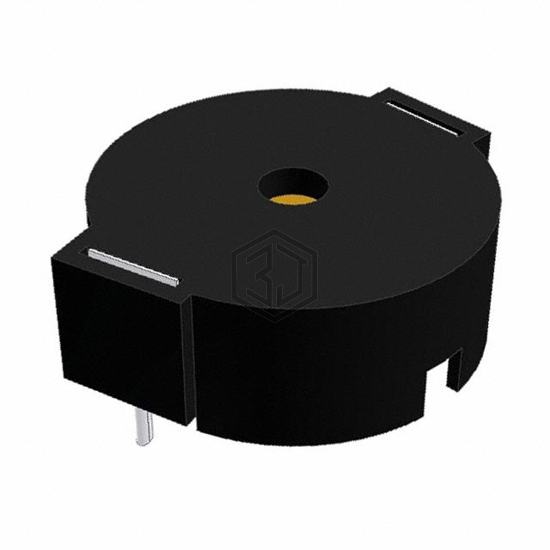

BUZZER PIEZO 10V 26.5X23MM TH
AT-2720-TT-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER PIEZO 10V 26.5X23MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 60°C, voltage - rated 10 V, current - supply 3.5mA.
In Stock: 745
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 10 V |
| Voltage Range | 1 ~ 30V |
| Frequency | 2.048kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 88dB @ 10V, 10cm |
| Current - Supply | 3.5mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.043" L x 0.906" W (26.50mm x 23.00mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
Submit your RFQ for AT-2720-TT-R and get a quote within 24 hours.
