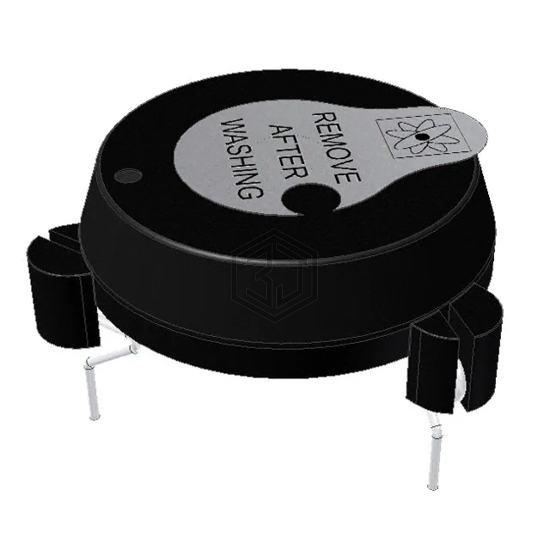

BUZZER PIEZO 12V 23MM TH
AT-2336-TWT-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER PIEZO 12V 23MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 60°C, voltage - rated 12 V, current - supply 8mA.
In Stock: 727
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 18V |
| Frequency | 3.6kHz |
| Technology | Piezo (with Feedback) |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 12V, 10cm |
| Current - Supply | 8mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.906" Dia (23.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
Submit your RFQ for AT-2336-TWT-R and get a quote within 24 hours.
