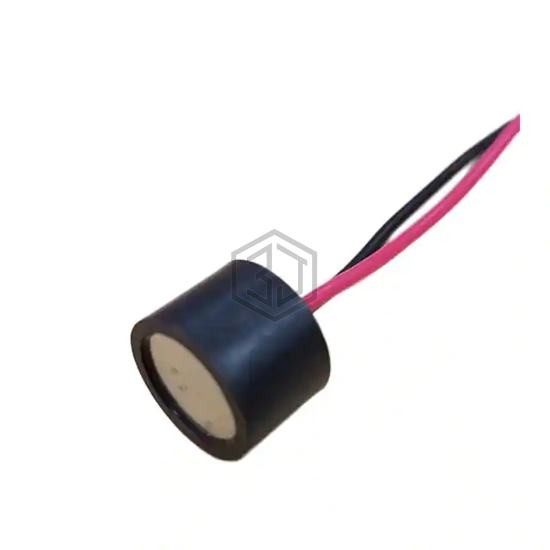

TRANSDUCER 10VPP 84DB 4250HZ IP6
AT-1442-T-WP-LW80-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. TRANSDUCER 10VPP 84DB 4250HZ IP6. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 95°C, voltage - rated 10 V, size / dimension 0.551" Dia (14.00mm).
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 10 V |
| Voltage Range | 30V |
| Frequency | 4.25kHz |
| Technology | Piezo |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 84dB @ 10V, 10cm |
| Current - Supply | - |
| Port Location | Top |
| Operating Temperature | -40°C ~ 95°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.551" Dia (14.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
Submit your RFQ for AT-1442-T-WP-LW80-R and get a quote within 24 hours.
