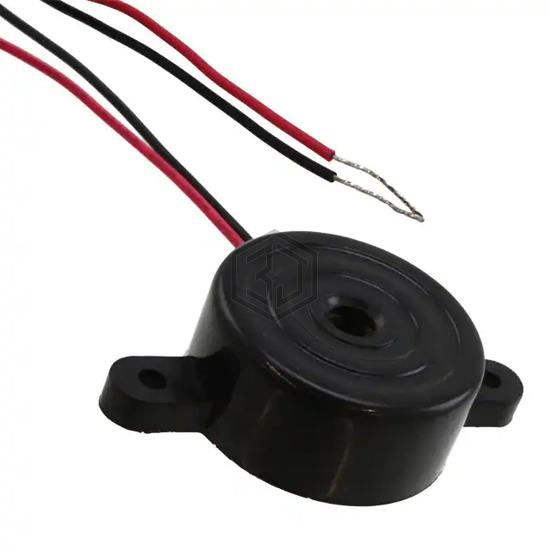

BUZZER PIEZO 12V 33.7MM FLANGE
AI-3435-TF-LW140-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER PIEZO 12V 33.7MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -30°C ~ 85°C, voltage - rated 12 V, current - supply 5mA.
In Stock: 120
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 28V |
| Frequency | 3.5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 96dB @ 12V, 10cm |
| Current - Supply | 5mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.327" Dia (33.70mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
Submit your RFQ for AI-3435-TF-LW140-R and get a quote within 24 hours.
