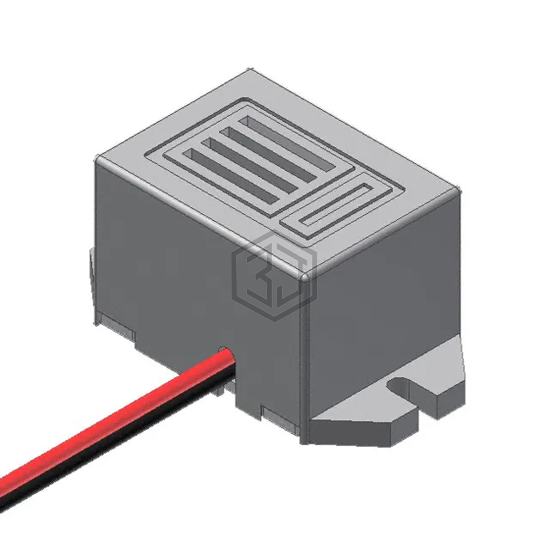

BUZZER MAGNETIC 12V 32X17 FLANGE
AI-2304-TF-LW120-12V-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER MAGNETIC 12V 32X17 FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 60°C, voltage - rated 12 V, current - supply 30mA.
In Stock: 544
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 8 ~ 16V |
| Frequency | 400Hz |
| Technology | Electromechanical/Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 89dB @ 12V, 10cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.260" L x 0.669" W (32.00mm x 17.00mm) |
| Height - Seated (Max) | 0.632" (16.05mm) |
Submit your RFQ for AI-2304-TF-LW120-12V-R and get a quote within 24 hours.
