IC GATE DRVR HI/LOW SIDE MODULE

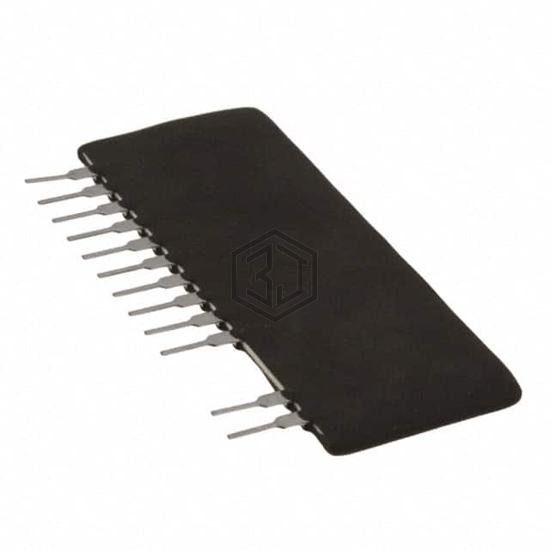

VLA504-01 is a PMIC - Gate Drivers manufactured by Powerex Inc.. IC GATE DRVR HI/LOW SIDE MODULE. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 60°C (TA), voltage - supply 14V ~ 15V, package / case 14-SIP Module, 12 Leads.
In Stock: 9,578
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Voltage - Supply | 14V ~ 15V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 300ns, 300ns |
| Operating Temperature | -20°C ~ 60°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 14-SIP Module, 12 Leads |
| Supplier Device Package | Module |
VLA504-01 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VLA541-01R | Powerex Inc. | IC GATE DRVR LOW-SIDE MODULE | 100% | View |
| VLA507-01 | Powerex Inc. | IC GATE DRVR LOW-SIDE MODULE | 100% | View |
| TC1413EPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 57% | View |
| TC1413NEPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 57% | View |
| EL7104CNZ | Renesas Electronics America Inc | IC GATE DRVR LOW-SIDE 8DIP | 53% | View |
| TC1412EPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 51% | View |
Submit your RFQ for VLA504-01 and get a quote within 24 hours.
