Renesas Electronics America Inc
IC GATE DRVR LOW-SIDE 8DIP

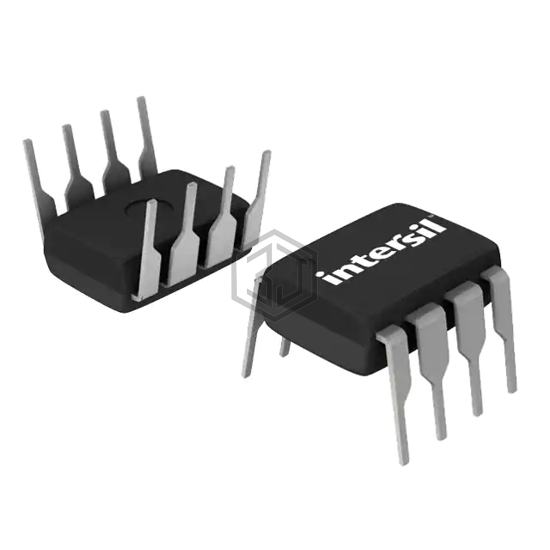

EL7104CNZ is a PMIC - Gate Drivers manufactured by Renesas Electronics America Inc. IC GATE DRVR LOW-SIDE 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 16V, package / case 8-DIP (0.300", 7.62mm).
In Stock: 1,531
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 16V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 7.5ns, 10ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC1413EPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 84% | View |
| TC1413NEPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 84% | View |
| MCP1407-E/AT | Microchip Technology | IC GATE DRVR LOW-SIDE TO220-5 | 83% | View |
| TC1412NEPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 81% | View |
| TC1412EPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 81% | View |
| TC4420EPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 80% | View |
Submit your RFQ for EL7104CNZ and get a quote within 24 hours.
