IC OFFLINE SWITCH FLYBACK 12EDIP

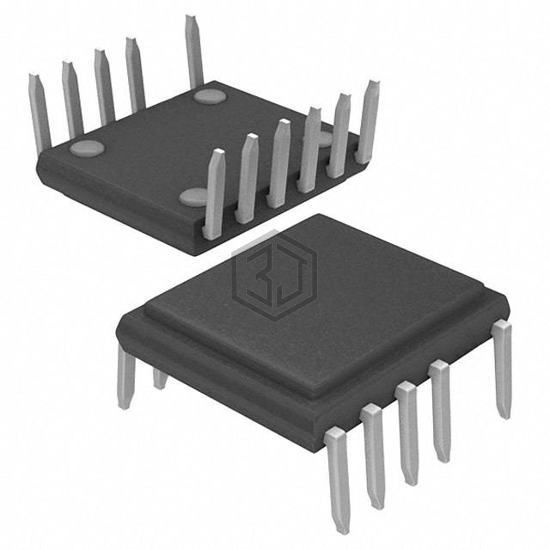

TOP266VG is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 12EDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad, power (watts) 39 W.
In Stock: 7,225
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz, 132kHz |
| Power (Watts) | 39 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad |
| Supplier Device Package | eDIP-12 |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TOP265VG | Power Integrations | IC OFFLINE SWITCH FLYBACK 12EDIP | 98% | View |
| TOP258PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 94% | View |
| TOP255YN | Power Integrations | IC OFFLINE SW FLYBACK TO220-7C | 80% | View |
| TOP259EN | Power Integrations | IC OFFLINE SWITCH FLYBACK 7ESIP | 70% | View |
| TOP260EN | Power Integrations | IC OFFLINE SWITCH FLYBACK 7ESIP | 70% | View |
| TOP260EG | Power Integrations | IC OFFLINE SWITCH FLYBACK 7ESIP | 70% | View |
Submit your RFQ for TOP266VG and get a quote within 24 hours.
