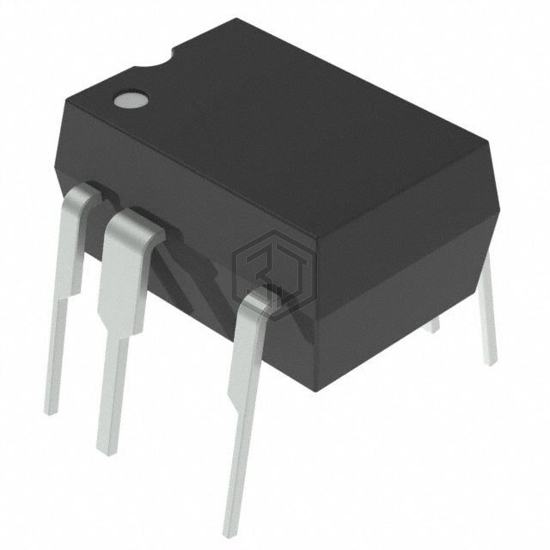

IC OFFLINE SWITCH FLYBACK 8DIP
TOP258PN is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 8-DIP (0.300", 7.62mm), 7 Leads, power (watts) 48 W.
In Stock: 14,216
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 48 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-PDIP-C |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TOP266VG | Power Integrations | IC OFFLINE SWITCH FLYBACK 12EDIP | 94% | View |
| TOP265VG | Power Integrations | IC OFFLINE SWITCH FLYBACK 12EDIP | 92% | View |
| TOP254PG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 85% | View |
| TOP253EN | Power Integrations | IC OFFLINE SWITCH FLYBACK 7ESIP | 82% | View |
| TOP259EN | Power Integrations | IC OFFLINE SWITCH FLYBACK 7ESIP | 70% | View |
| TOP260EG | Power Integrations | IC OFFLINE SWITCH FLYBACK 7ESIP | 70% | View |
Submit your RFQ for TOP258PN and get a quote within 24 hours.
