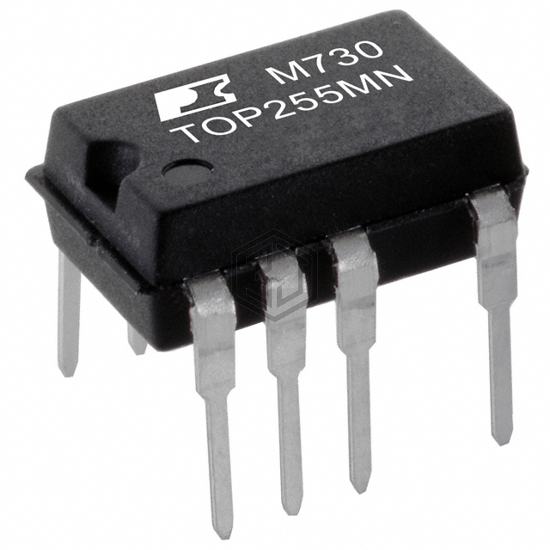

IC OFFLINE SW FLYBACK 10CSDIP
TOP255MN is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SW FLYBACK 10CSDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 10-SDIP (0.300", 7.62mm), 9 Leads, power (watts) 30 W.
In Stock: 2,172
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 30 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 10-SDIP (0.300", 7.62mm), 9 Leads |
| Supplier Device Package | SDIP-10C |
| Mounting Type | Through Hole |
TOP255MN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TOP244PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 98% | View |
| TOP242F | Power Integrations | IC OFFLINE SW FLYBACK TO262-7C | 92% | View |
| TOP243Y | Power Integrations | IC OFFLINE SW FLYBACK TO220-7C | 89% | View |
| TOP267VGAU | Power Integrations | IC OFFLINE SWITCH FLYBACK 12EDIP | 89% | View |
| TOP262EN | Power Integrations | IC OFFLINE SWITCH FLYBACK 7ESIP | 70% | View |
| LNK3694P | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 67% | View |
Submit your RFQ for TOP255MN and get a quote within 24 hours.
