IC OFFLINE SWITCH MULT TOP 8SMD

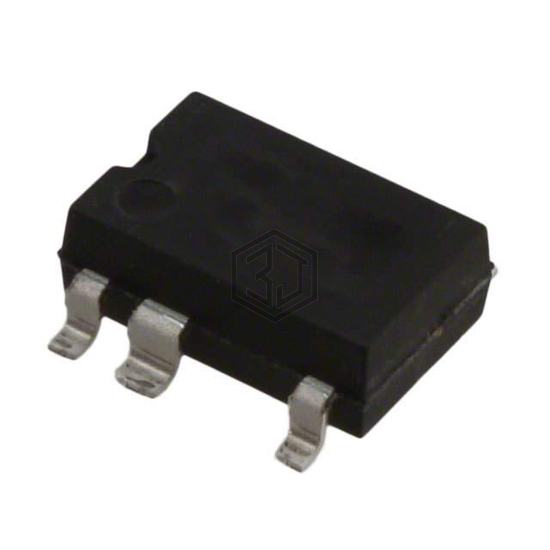

LNK306G-TL is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH MULT TOP 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 8-SMD (7 Leads), Gull Wing, frequency - switching 66kHz.
In Stock: 5,134
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 69% |
| Frequency - Switching | 66kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Supplier Device Package | SMD-8B |
| Mounting Type | Surface Mount |
LNK306G-TL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TOP249R-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK TO263 | 100% | View |
| TOP234G-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SMD | 100% | View |
| LNK304GN | Power Integrations | IC OFFLINE SWITCH MULT TOP 8SMD | 100% | View |
| TOP265KG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 99% | View |
| TOP269KG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 99% | View |
| LNK3296G-TL | Power Integrations | IC OFFLINE SWITCH MULT TOP 8SMD | 96% | View |
Submit your RFQ for LNK306G-TL and get a quote within 24 hours.
