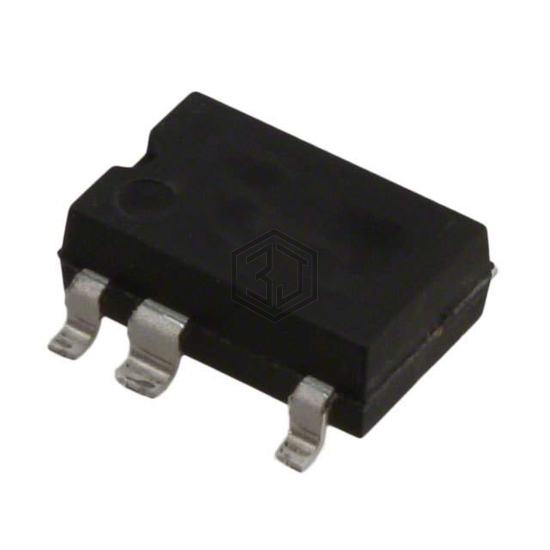

IC OFFLINE SWITCH MULT TOP 8SMD
LNK3296G-TL is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH MULT TOP 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 8-SMD (7 Leads), Gull Wing, frequency - switching 66kHz.
In Stock: 3,848
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 900V |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage - Start Up | 470 mV |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 68% |
| Frequency - Switching | 66kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Supplier Device Package | SMD-8C |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TOP265KG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 96% | View |
| TOP269KG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 96% | View |
| TOP271KG | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 96% | View |
| TOP265KG | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 96% | View |
| TOP267KG | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 96% | View |
| LNK3208G-TL | Power Integrations | 485 MA (MDCM) 775 MA (CCM) | 96% | View |
Submit your RFQ for LNK3296G-TL and get a quote within 24 hours.
