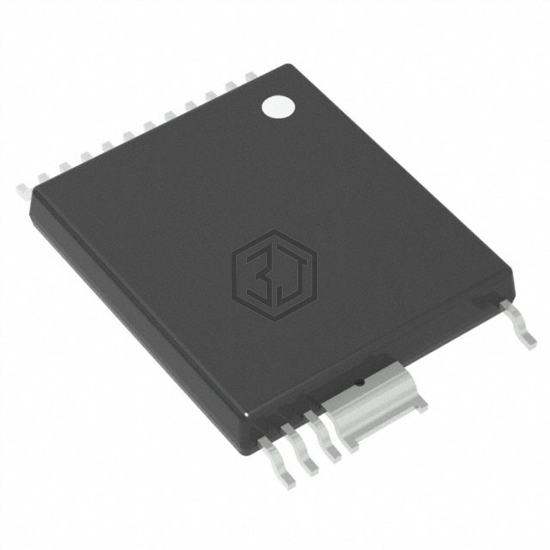

400W MOTOR DRIVER POWER IC
BRD1167C-TL is a PMIC - Full, Half-Bridge Drivers manufactured by Power Integrations. 400W MOTOR DRIVER POWER IC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3.3V ~ 5V, package / case 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | DC Motors, General Purpose |
| Interface | Logic, PWM |
| Load Type | Capacitive and Resistive |
| Technology | IGBT |
| Rds On (Typ) | 470mOhm LS + HS |
| Current - Output / Channel | 11.5A |
| Current - Peak Output | - |
| Voltage - Supply | 3.3V ~ 5V |
| Voltage - Load | 50V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads |
| Supplier Device Package | InSOP-24C |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BRD1267C-TL | Power Integrations | 400W MOTOR DRIVER POWER IC | 100% | View |
| L99SD01TR-E | STMicroelectronics | IC SOLENOID DRIVER POWERSSO36 | 80% | View |
| L99SD01-E | STMicroelectronics | IC SOLENOID DRIVER POWERSSO36 | 80% | View |
| BQ500101DPCR | Texas Instruments | IC NEXFET SYNC BUCK 8VSON | 76% | View |
| BQ500101DPCT | Texas Instruments | IC NEXFET SYNC BUCK 8VSON | 76% | View |
| BTN70301EPAXUMA1 | Infineon Technologies | IC HALF BRIDGE DRIVER TSDSO-14 | 58% | View |
