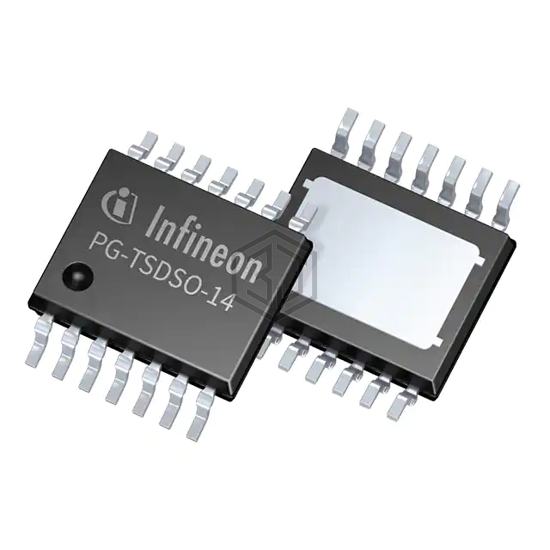

IC HALF BRIDGE DRIVER TSDSO-14
BTN70301EPAXUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC HALF BRIDGE DRIVER TSDSO-14. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 6V ~ 18V, package / case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad.
In Stock: 6,031
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | SMART7 |
| Rds On (Typ) | 20mOhm LS, 12mOhm HS |
| Current - Output / Channel | 7A |
| Current - Peak Output | 17A |
| Voltage - Supply | 6V ~ 18V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Diagnostic Enable, Enable, SENSE |
| Fault Protection | Current Limiting, Over Current, Over Temperature, Over Voltage, Short Circuit |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-TSDSO-14 |
