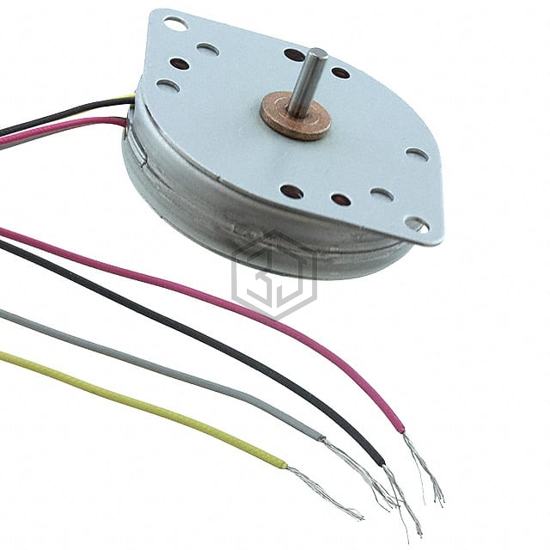

STEPPER MOTOR PM BIPOLAR 5V
44M100D1B is a Stepper Motors manufactured by Portescap. STEPPER MOTOR PM BIPOLAR 5V. Key specifications: operating temperature 0°C ~ 60°C, voltage - rated 5VDC, size / dimension Round - 1.732" Dia (44.00mm), termination style Wire Leads.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Bipolar |
| Voltage - Rated | 5VDC |
| Current Rating (Amps) | - |
| Steps per Revolution | 100 |
| Step Angle | 3.6° |
| Accuracy | ±11% |
| Torque - Holding (oz-in / mNm) | 5.5 / 38.8 |
| Size / Dimension | Round - 1.732" Dia (44.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.118" (3.00mm) |
| Length - Shaft and Bearing | 0.450" (11.43mm) |
| Mounting Hole Spacing | 1.950" (49.48mm) |
| Termination Style | Wire Leads |
| Operating Temperature | 0°C ~ 60°C |
| Coil Resistance | 12.5 Ohms |
| Features | Round Shaft |
