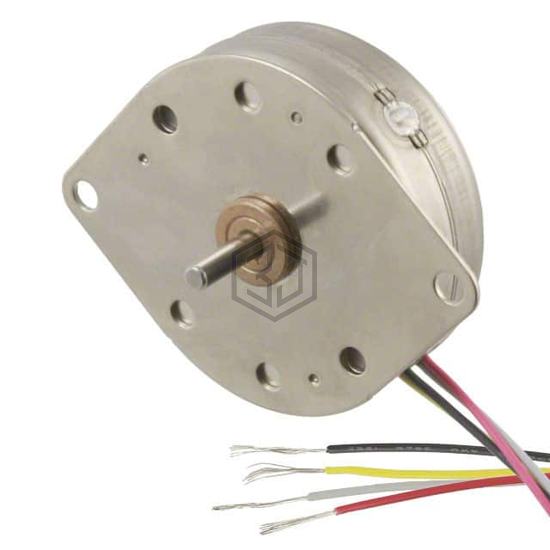

STEPPER MOTOR PM BIPOLAR 5V
42M100B1B is a Stepper Motors manufactured by Portescap. STEPPER MOTOR PM BIPOLAR 5V. Key specifications: operating temperature -20°C ~ 70°C, voltage - rated 5VDC, current rating (amps) 400 mA, size / dimension Round - 1.650" Dia (42.00mm).
In Stock: 26
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Bipolar |
| Voltage - Rated | 5VDC |
| Current Rating (Amps) | 400 mA |
| Steps per Revolution | 100 |
| Step Angle | 3.6° |
| Accuracy | ±11% |
| Torque - Holding (oz-in / mNm) | 7 / 49.4 |
| Size / Dimension | Round - 1.650" Dia (42.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.118" (3.00mm) |
| Length - Shaft and Bearing | 0.450" (11.43mm) |
| Mounting Hole Spacing | 1.950" (49.48mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 70°C |
| Coil Resistance | 12.5 Ohms |
| Features | Round Shaft |
Submit your RFQ for 42M100B1B and get a quote within 24 hours.
