STEPPER MOTOR PM UNIPOLAR 12V

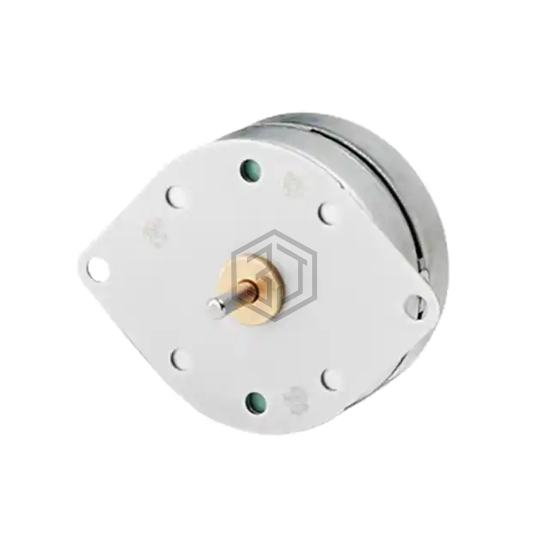

42M048C2U is a Stepper Motors manufactured by Portescap. STEPPER MOTOR PM UNIPOLAR 12V. Key specifications: operating temperature -20°C ~ 70°C, voltage - rated 12VDC, current rating (amps) 230 mA, size / dimension Round - 1.650" Dia (42.00mm).
In Stock: 51
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Unipolar |
| Voltage - Rated | 12VDC |
| Current Rating (Amps) | 230 mA |
| Steps per Revolution | 48 |
| Step Angle | 7.5° |
| Accuracy | ±6.66% |
| Torque - Holding (oz-in / mNm) | 9.4 / 66.2 |
| Size / Dimension | Round - 1.650" Dia (42.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.118" (3.00mm) |
| Length - Shaft and Bearing | 0.450" (11.43mm) |
| Mounting Hole Spacing | 1.950" (49.48mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 70°C |
| Coil Resistance | 52.4 Ohms |
| Features | Round Shaft |
Submit your RFQ for 42M048C2U and get a quote within 24 hours.
