STEP MOTOR PM GEARED BIPOLAR 12V

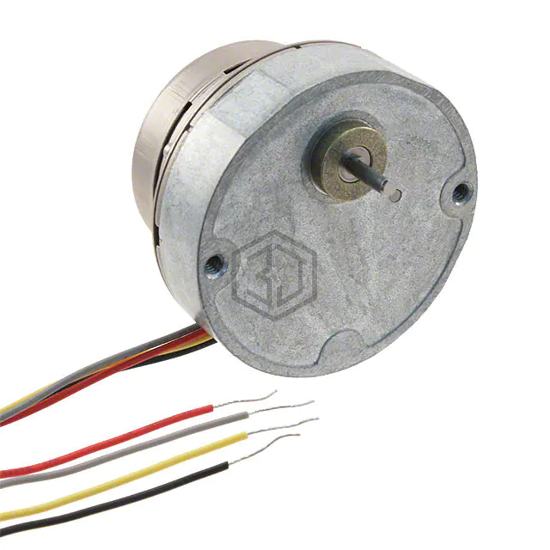

42M048C2B-R21 is a Stepper Motors manufactured by Portescap. STEP MOTOR PM GEARED BIPOLAR 12V. Key specifications: operating temperature -20°C ~ 70°C, voltage - rated 12VDC, current rating (amps) 550 mA, size / dimension Round - 1.650" Dia (42.00mm).
In Stock: 127
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet Gear Motor |
| Coil Type | Bipolar |
| Voltage - Rated | 12VDC |
| Current Rating (Amps) | 550 mA |
| Steps per Revolution | 480 |
| Step Angle | 0.75° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 11.9 / 84 |
| Size / Dimension | Round - 1.650" Dia (42.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.093" (2.36mm) |
| Length - Shaft and Bearing | 0.469" (11.92mm) |
| Mounting Hole Spacing | 1.880" (47.63mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 70°C |
| Coil Resistance | 9.1 Ohms |
| Features | Round Shaft |
Submit your RFQ for 42M048C2B-R21 and get a quote within 24 hours.
