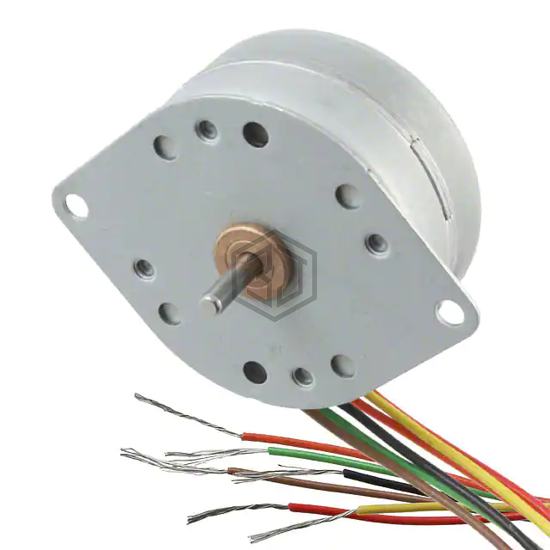

STEPPER MOTOR PM UNIPOLAR 5V
42L048D1U is a Stepper Motors manufactured by Portescap. STEPPER MOTOR PM UNIPOLAR 5V. Key specifications: operating temperature -20°C ~ 70°C, voltage - rated 5VDC, current rating (amps) 960 mA, size / dimension Round - 1.650" Dia (42.00mm).
In Stock: 62
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Unipolar |
| Voltage - Rated | 5VDC |
| Current Rating (Amps) | 960 mA |
| Steps per Revolution | 48 |
| Step Angle | 7.5° |
| Accuracy | ±15% |
| Torque - Holding (oz-in / mNm) | 15.1 / 106 |
| Size / Dimension | Round - 1.650" Dia (42.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.118" (3.00mm) |
| Length - Shaft and Bearing | 0.450" (11.43mm) |
| Mounting Hole Spacing | 1.950" (49.48mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 70°C |
| Coil Resistance | 5.2 Ohms |
| Features | Round Shaft |
Submit your RFQ for 42L048D1U and get a quote within 24 hours.
