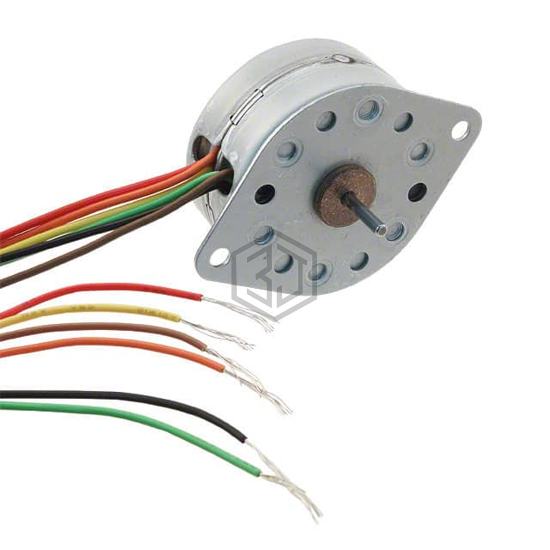

STEPPER MOTOR PM UNIPOLAR 5V
35M048B1U is a Stepper Motors manufactured by Portescap. STEPPER MOTOR PM UNIPOLAR 5V. Key specifications: operating temperature -20°C ~ 70°C, voltage - rated 5VDC, current rating (amps) 400 mA, size / dimension Round - 1.420" Dia (35.94mm).
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Unipolar |
| Voltage - Rated | 5VDC |
| Current Rating (Amps) | 400 mA |
| Steps per Revolution | 48 |
| Step Angle | 7.5° |
| Accuracy | ±15% |
| Torque - Holding (oz-in / mNm) | 2.6 / 18.35 |
| Size / Dimension | Round - 1.420" Dia (35.94mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.079" (2.00mm) |
| Length - Shaft and Bearing | 0.445" (11.30mm) |
| Mounting Hole Spacing | 1.650" (42.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 70°C |
| Coil Resistance | 12.5 Ohms |
| Features | Round Shaft |
