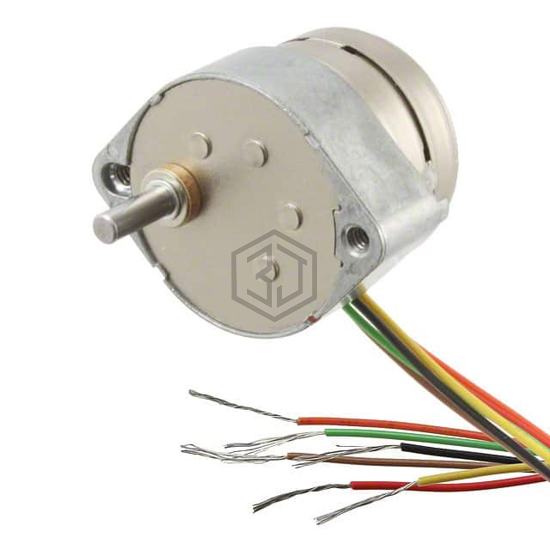

STEPPER MOTOR PM GEARED UNI 12V
26M048B2U-V31 is a Stepper Motors manufactured by Portescap. STEPPER MOTOR PM GEARED UNI 12V. Key specifications: operating temperature -20°C ~ 70°C, voltage - rated 12VDC, current rating (amps) 110 mA, size / dimension Round - 1.030" Dia (26.16mm).
In Stock: 3,064
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet Gear Motor |
| Coil Type | Unipolar |
| Voltage - Rated | 12VDC |
| Current Rating (Amps) | 110 mA |
| Steps per Revolution | 1440 |
| Step Angle | 0.25° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 1.3 / 9.2 |
| Size / Dimension | Round - 1.030" Dia (26.16mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.125" (3.18mm) |
| Length - Shaft and Bearing | 0.432" (10.97mm) |
| Mounting Hole Spacing | 1.180" (29.87mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 70°C |
| Coil Resistance | 110 Ohms |
| Features | Round Shaft |
Submit your RFQ for 26M048B2U-V31 and get a quote within 24 hours.
