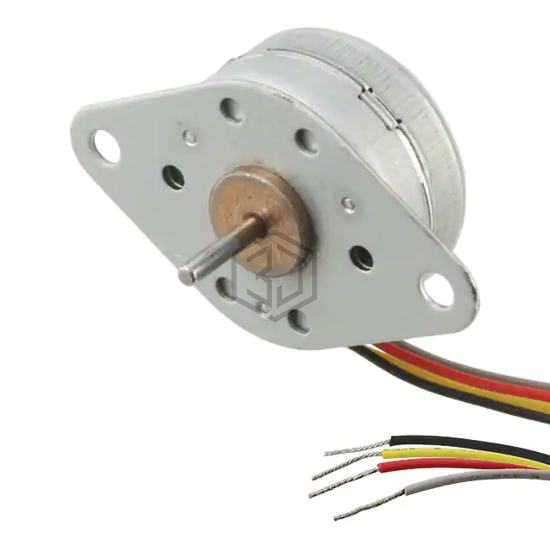

STEPPER MOTOR PM BIPOLAR 5V
26M048B1B is a Stepper Motors manufactured by Portescap. STEPPER MOTOR PM BIPOLAR 5V. Key specifications: operating temperature -20°C ~ 70°C, voltage - rated 5VDC, current rating (amps) 250 mA, size / dimension Round - 1.030" Dia (26.16mm).
In Stock: 241
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Bipolar |
| Voltage - Rated | 5VDC |
| Current Rating (Amps) | 250 mA |
| Steps per Revolution | 48 |
| Step Angle | 7.5° |
| Accuracy | ±15% |
| Torque - Holding (oz-in / mNm) | 1.5 / 10.6 |
| Size / Dimension | Round - 1.030" Dia (26.16mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.079" (2.00mm) |
| Length - Shaft and Bearing | 0.445" (11.30mm) |
| Mounting Hole Spacing | 1.370" (34.90mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 70°C |
| Coil Resistance | 19.8 Ohms |
| Features | Round Shaft |
Submit your RFQ for 26M048B1B and get a quote within 24 hours.
