STEP MOTOR HYBRID BIPOLAR 6.84V

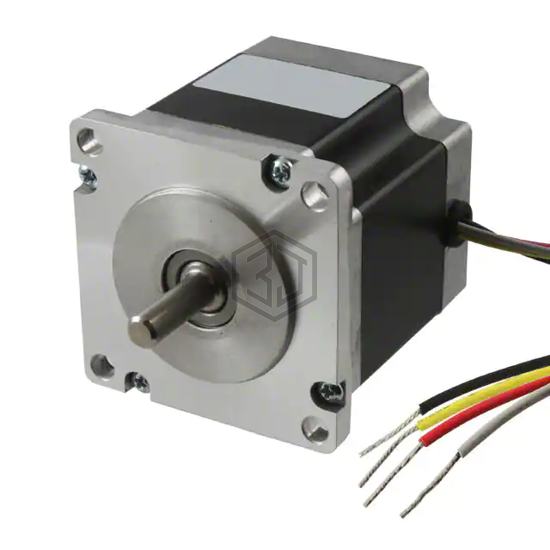

23H118D10B is a Stepper Motors manufactured by Portescap. STEP MOTOR HYBRID BIPOLAR 6.84V. Key specifications: operating temperature -20°C ~ 40°C, voltage - rated 6.84VDC, current rating (amps) 1 A, size / dimension Square - 2.250" x 2.250" (57.15mm x 57.15mm).
In Stock: 1,790
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 6.84VDC |
| Current Rating (Amps) | 1 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 180 / 1271 |
| Size / Dimension | Square - 2.250" x 2.250" (57.15mm x 57.15mm) |
| NEMA Frame Size | 23 |
| Diameter - Shaft | 0.250" (6.35mm) |
| Length - Shaft and Bearing | 0.810" (20.57mm) |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 40°C |
| Coil Resistance | 6.84 Ohms |
| Features | Round Shaft |
Submit your RFQ for 23H118D10B and get a quote within 24 hours.
